Electronics-Salon 8 Channel 10Amp SPDT Power Relay Module Board (Operating Voltage: DC 5V)
4.2 (91 items)
Limited Time SaleUS$22.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211059321 | Release Date | 2026/04/04 | List Price | US$15.20 | Model Number | 211059321 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

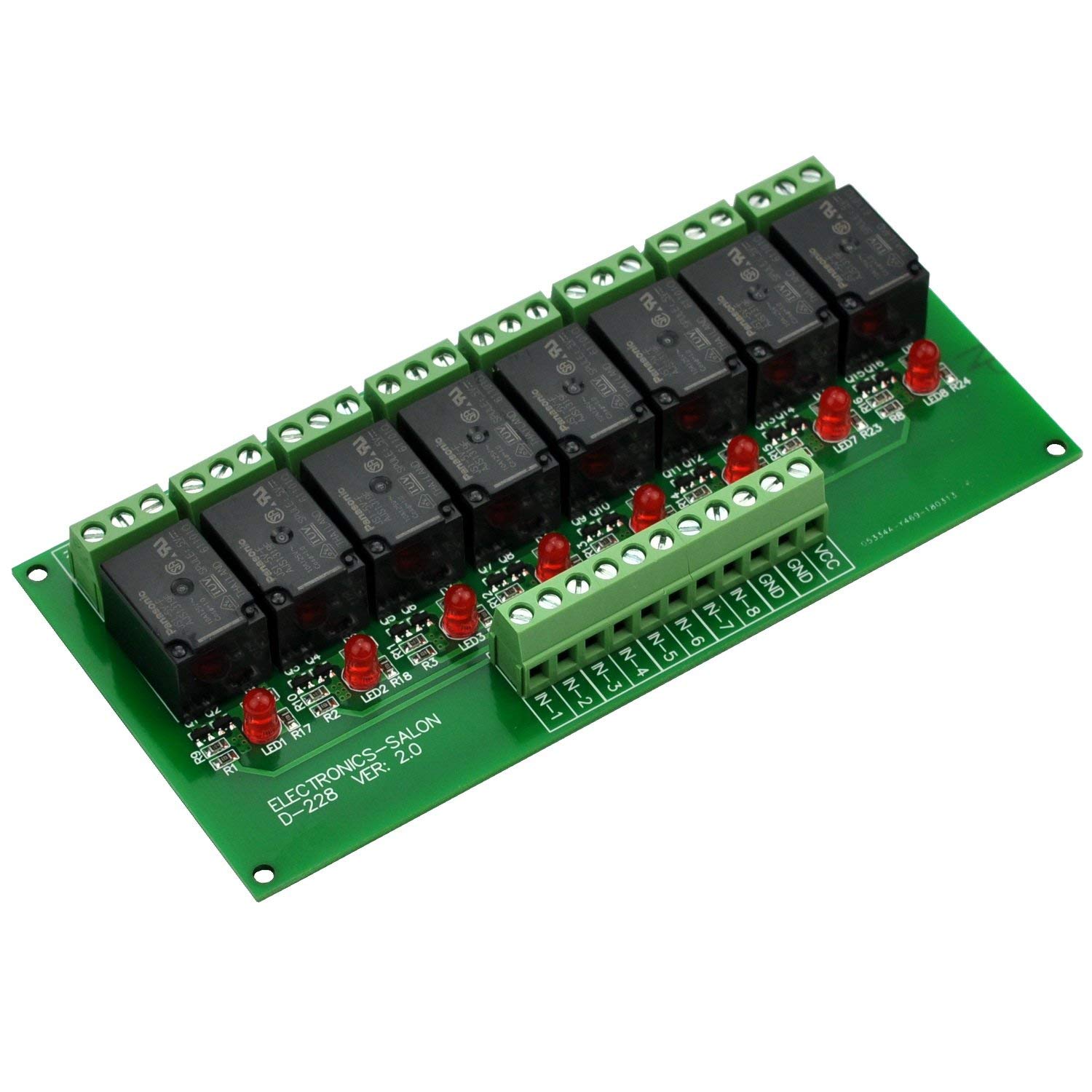

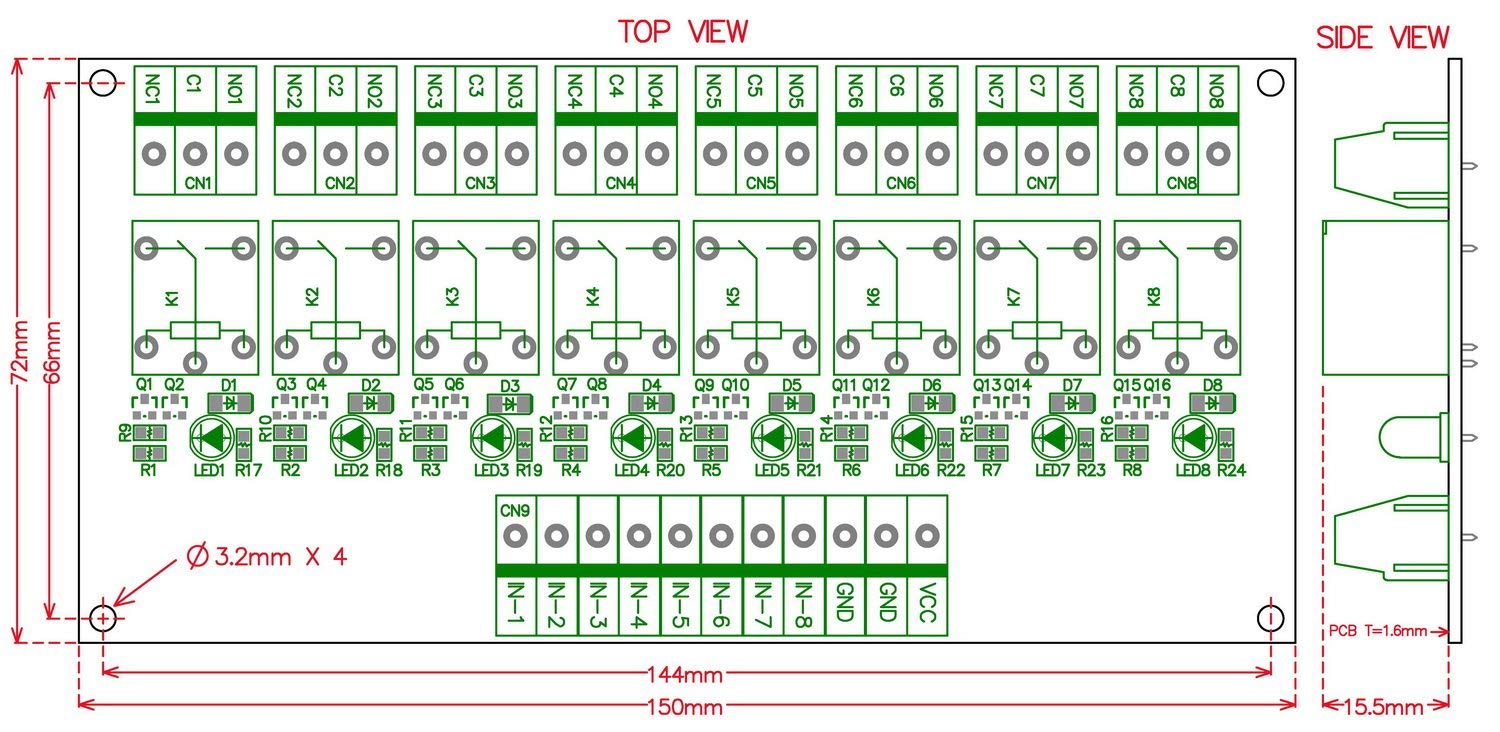

8 Channel 10Amp SPDT Power Relay Module Board. This item has been assembled, and electrical test passed. JS1-5V-F Power Relays. LED indicator for each relay channel. Darlington transistors circuit driving relay, improve the reliability of action. FR-4 Fiber glass PCB (Double Layer). Operating Voltage/Current(max.): DC5V / 720mA (relay all action). Input control signal voltage: 0V - 0.5V Low state (relay not-action), 2.5V - 20V High state (relay action). Input control signal high state current: 2.5V: 0.1mA. 5V: 0.35mA. 12V: 1.1mA. 24V: 2.4mA. Relay Spec: Part Number: JS1-5V-F Power Relays. Contact Rating: 125VAC/250VAC 10Amp or 30VDC 5Amp. Wire connection and PCB size: VCC: Power supply input. GND: Power supply ground and control signal ground. CH-x: Control signal input, Low: relay OFF, High: relay ON. COM / NO / NC: (Cx=COMx) . Control signal state low, the relay OFF, COM - NO disconnected, COM - NC connected. Control signal stage high, the relay ON, COM - NO connected, COM - NC disconnected.This is a very simple module board, no paper specifications, any questions, feel free to tell me. Datasheet: https://images-na.ssl-images-amazon.com/images/I/91AHtk3PT3L.pdf
- 8 Channel 10Amp SPDT Power Relay Module Board, Operationg Voltage DC 5V.
- This item has been assembled, and electrical test passed.
- JS1-5V-F Power Relays. LED indicator for each relay channel. Darlington transistors circuit driving relay, Improve the reliability of action.
- FR-4 Fiber glass dual layers PCB.
| Model | 8541715732 |
|---|---|
| Wattage | 3.6 watts |
| Brand Name | Electronics-Salon |
| Part Number | MD-D228N Series |
| Coil Voltage | 5 Volts |
| Contact Type | Spdt |
| Manufacturer | Electronics-Salon |
| Mounting Type | PCB Mount |
| Connector Type | Through Hole |
| Current Rating | 10 Amps |
| Operation Mode | Electrical |
| Contact Material | Tungsten |
| Specification Met | Ma |
| Contact Current Rating | 10 Amps |
| Maximum Switching Current | 10 Amps |
| Maximum Switching Voltage | 5 Volts |
| Minimum Switching Voltage | 2.5 Volts |
