KEMIMOTO 8 Gang Switch Panel Enhanced Sensitivity, LED Touch Control, Electronic Relay System, 12-24V Waterproof Compatible with Cars, UTVs, Trucks, Wrangler and RZR X3
4.2 (52 items)
Limited Time SaleUntil the end
11
03
56
US$54.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$36.00
Product details
| Management number | 215550529 | Release Date | 2026/04/12 | List Price | US$36.00 | Model Number | 215550529 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

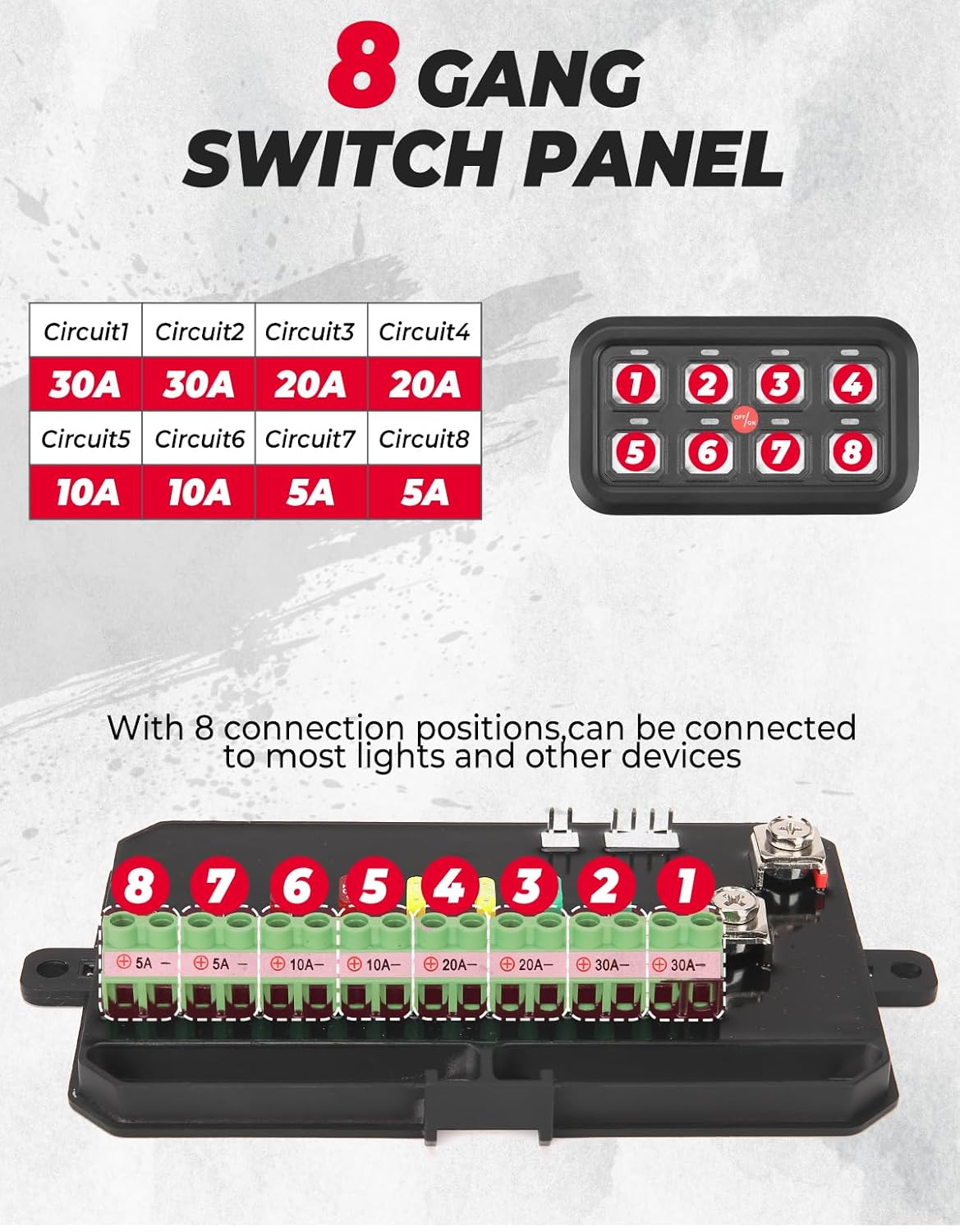

- Convenient 8-in-1 Switch Panel: KEMIMOTO 8 gang switch panel is universal for most vehicles. Operating Voltage: DC 12-24V, Max Current: 60A, Rated Voltage: 12V 20A / 24V 10A; Operating at 12 Volts: Max Power Rating of 600W, operating at 24 Volts: Max Power Rating of 1200W; Operating Temperature: -40℉ - +221℉
- Triple Protection: The switch box is equipped with a 60Amp circuit breaker, blade fuses, and high-power solid-state relays. Providing you with thermal protection, overload protection, over-voltage protection, and over-current protection. Note: Must NOT be immersed in water or exposed to heavy rains
- Upgrade Version: The KEMIMOTO 8 gang switch panel has 25% more sensitivity and 30% more lifespan than ordinary control panels because we are committed to providing customers with more reliable products. KEMIMOTO 8 Gang switch panel has an automatic dimmable feature, the backlight brightness of the switch panel will change according to the brightness of the environment
- Easy to Install: Wiring was very easy. When adding accessories, all you need is power (red) and ground (black) for each device, no need for extra fuses, switches, or relays. The best way to clean up all the wiring and add a single panel to control everything
- Wide Application: Compatible with Wrangler, RZR, and X3, the integrated design is convenient for the owner to control multiple accessories. Taking limited space on some vehicles into account, this more compact size switch panel control system is perfect for all situations.KEMIMOTO 8 In 1 touch screen panel is more suitable for your needs, such as truck, boat, off-road, powersport, marine, atv, utv, suv, car, bus, heavy duty, etc
| Color | Green |
|---|---|
| Model | KMB0401-04001BK-M |
| Wattage | 1200 watts |
| Terminal | Screw |
| Brand Name | KEMIMOTO |
| Unit Count | 1.0 Count |
| Switch Type | Touch Switch |
| Circuit Type | 8-way |
| Contact Type | Normally Closed |
| Manufacturer | KEMIMOTO |
| Actuator Type | Touch |
| Material Type | Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Control Method | Touch |
| Current Rating | 20 Amps |
| Operation Mode | Automatic |
| Controller Type | Push Button |
| Item Dimensions | 11.8 x 7.9 x 3 inches |
| Number of Items | 1 |
| Contact Material | Plastic |
| Operating Voltage | 12 Volts |
| Specification Met | CE, ETL, ISO 9001, RoHS, cULus |
| Included Components | Switch Panel Screen、 Circuit Control Box、Control Box Bracket |
| Number of Positions | 8 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 221 Degrees Fahrenheit |
| International Protection Rating | IP65 |
